| 원래 장소: | 베이징, 중국 |
| 브랜드 이름: | Zhongkemeichuang |
| 인증: | CE for machine, ROHs for ink |
| 모델 번호: | ZK-Q7 플러스 |
| 최소 주문 수량: | 1 |
|---|---|
| 가격: | negotiable |
| 포장 세부 사항: | 1개 합판 박스 |
| 공급 능력: | 100SETS / 달 |
| 이름: | 표면 트레이싱 잉크 난방 LCD 터치 스크린 ZKMC 2880dpi 3D 잉크젯 수직 벽 프린터 | 그림 속도: | 1-7㎡/h, 조정할 수 있어서 속도가 납니다 |
|---|---|---|---|
| 그림 넷 높이를 페인트를 칠하기: | 1.8M | 표면 추적: | 과장적 최고 센서, 위 아래로 상호 도입 |
| 정확성을 페인트를 칠하기: | 720---2880dpi | 기계 하중: | 62 킬로그램 |
| 잉크 사용: | 수성 잉크 | 디스플레이 화면: | 4.3 " LCD 터치 스크린 |
| 살포 거리: | 0.5--1 센티미터 | 응용된 벽: | 안에서 & 밖 퍼티 벽, 라텍스 벽, 하얀 벽, 규조류 토담, 패각 분말 벽, 목조벽, 백서, 벽돌 벽, 캔버스, 기타 등등. |
| 하이 라이트: | 벽 자외선 프린터 즈케이엠크,터치 스크린 벽 벽 프린터 기계,벽 벽화 프린터 기계 즈케이엠크 |
||

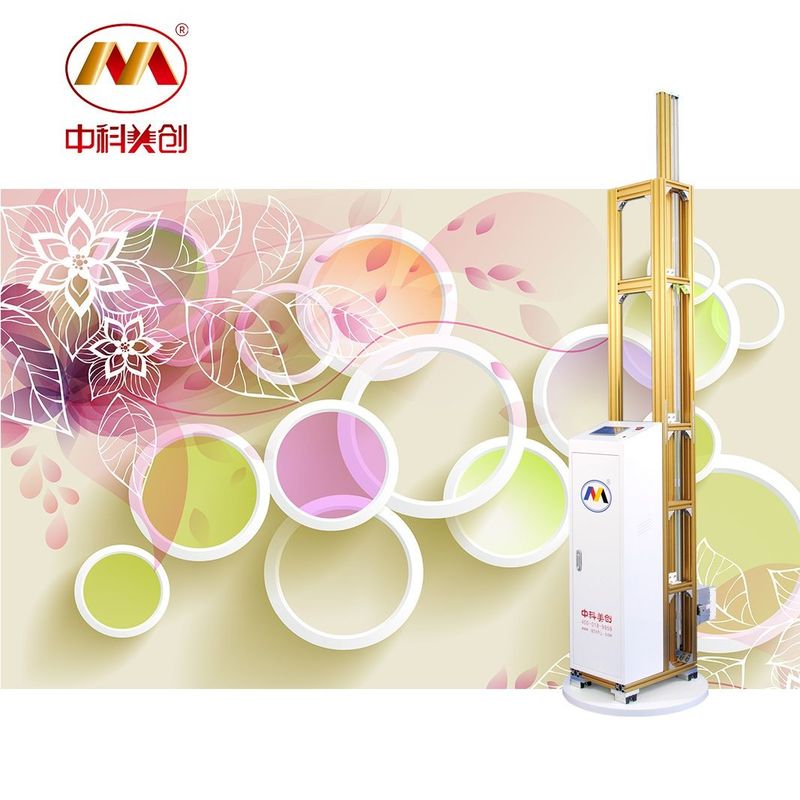

Surface Tracing Ink heating LCD Touch Screen ZKMC 2880dpi 3D Inkjet Vertical Wall Printer
ZKMC Wall printing machine has the following characteristics:
1) Suitable for any material home decoration, and out side wall.
2) Tailor-made design, you can choose your favorite pattern according to your preferences.
3) The construction is simple, the wall painting only need 1 person to watch the operation, a wall printing machine of about 50 kilograms can operate automatically and efficiently.
4) Eco-friendly water-based ink, anti-ultraviolet, anti-conjunctival, odorless.
5) Compared with the return, the machine and ink cost is very low. The ink cost less than half us dollar per square meter, the industry charge standard spice 10--50usd or even higher. The printing speed is adjustable, vary at 3-20㎡/h, the high the printing resolution, the lower the speed. Outside wall You can use fast speed, indoor wall You can use higher resolution.
ZKMC vertical wall printer ZK-Q7PLUS, is very popular, espeically in some developing coutries. Why? Mainly because it's affordable price and stable machine performance for both indoor and outdoor mural printings, and can bring you a lot of business chance and money.
The machine's equipped with 2 American banner ultrasonic sensors which can detect the wall flatness automatically. Accordingly, the printhead moves back and forth on the Z axis. Therefore, an appropriate distance from the wall and the printhead is kept, to effectively preventing printhead damage.
| Basic parameters | |
| Data transmission mode | USB |
| L*W*H (main body from ground) | Standard model: 70*31*239cm (the other models: 259cm, 329cm) |
| Printhead | Auto cleaning |
| Ink consumption | 8-12ml/m2 (less than USD1/m2) |
| Ink base color | Dual 4 colors (CMYK, CMYK), use special water based ink |
| Painting precision | From 720DPI, upto 2880DPI |
| Painting direction | Vertical |
| Painting speed | Multispeed adjustable, ~1-7m2/h |
| Voltage/power | 90-246V/380W,47-63HZ |
| Noise | Standy<20dBA, painting <50dBA |
| Storage/Operation | -10℃-35℃(59°F-95°F) |
| 10%-70% relative humidity, in non-condensation state | |
| Surface tracing | Hyperbolic banner sensors, two-way induction up and down |
| Machine configuration | |
| X axis guide | 5m rails |
| Y axis guide | Standard model: 219cm (other models: 239cm, 309cm) |
| Z axis guide | 15cm |
| Display screen | 4.3’’ LCD, touch screen |
| Spay distance | 0.5-1cm |
| X axis effective stroke | 470cm |
| Y axis effective stroke | Standard model: 180cm (other models: 200cm, 270cm) |
| Z axis effective stroke | 10cm |
| Synchro belt | 1pc |
| Drive rack | 5pcs |
| Net picture print height | Standard 1.8m (other models: 2.0m, 2.7m), unlimited width |
| Machine weight | 62kg |
| Lead rails weight | 10kg/piece*5pcs, total 50kg |
| Applied wall | Inside & outside putty wall, latex wall, white wall, diatom mud wall, shell powder wall, paper, brick wall, normal white wall, canvas, etc. |
| Control configuration | |
| Ink container capacity | 400ml |
| Printhead cleaning | Auto |
| Pump test | Y |
| Stepper motor | Y |
| Level | Y |
| Painting mode | Bi-directional |
| Ultrasonic sensors | 2pcs |
| Performance configuration | |
| Language | English |
| Computer system | Windows XP, win7, win8, win10 |
| Packing | 1 plywood packing for standard model of machine, machine and inks in 1 box, total gross weight ~220kg, box dimension ~237x81x68cm |
| Remarks | The above data for reference only, may change due to continuous product/model upgrading. |
ZKMC vertical wall printer advantages:
Beijing Zhongkemeichuang (ZKMC) Science And Technology Ltd., established in 2013, is a high-tech company specializing in R & D, production, sales and after-sales service of intelligent wall printer machine. In order to meet the market demand, the scale of the brand is becoming larger and larger. We have sole agents in Middle East, Russia and Belarus, have set up offices in Changsha, Guiyang, Jinan. Zhongkemei is the founder of 3d colorful inkjet wall printer. This invention not only saves labor cost, but also breaks the limitation of hand drawing. Break through the technical problems at all levels, perfect response to curved wall, all kinds of weather, and other problems. Many traditional hand-painted masters are very much impressed by our wall printer. It was recommended as a potential investment project by CCTV, and was specially reported by CCTV financial channel. Our products are exported to Romania, Switzerland, Russia, Egypt, Israel, Canada, Sweden, Vietnam, and other countries. ZKMC wall printer quality has been well received by customers.
FAQ
1. What payment method are supported?
Preferred payment method is T/T.
2. What’s your delivery time?
We will arrange the delivery within 5~10 working days after receiving the payment.
3. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.
4. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. We suggest that users order spare parts package for long time maintenance and fast replacement.
5. If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the issue and provide related solution accordingly.
